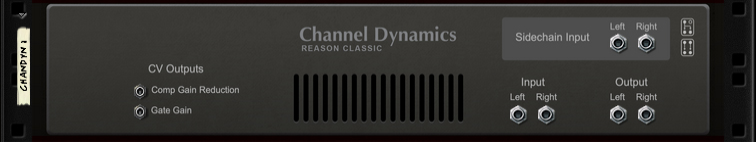

Connections CV Outputs These two CV modulation outputs can be used for controlling other devices that feature CV modulation inputs. The modulation parameters are: • Compressor Gain Reduction (see “Compressor Gain Reduction Meter”) • Gate Gain This CV signal is high when the gate is open and goes low when the gate closes. Sidechain Input Left & Right Patch an external audio signal to be used as sidechain signal here. See “External Sidechain” for more information. Input Left & Right Patch the audio signals you want to process here. If your input signal is in mono, connect only to the L (left) input. Output Left & Right These are the audio outputs.
