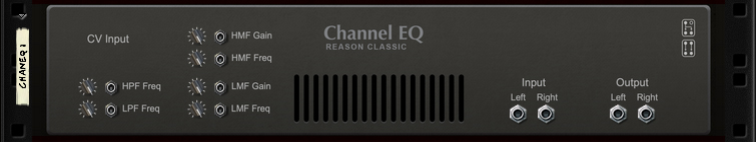

Connections

CV Inputs

These six CV modulation inputs, with associated trim pots, can be used for controlling the following parameters from CV modulation sources:

•	HPF Frequency (see “HPF Freq”)

•	LPF Frequency (see “LPF Freq”)

•	HMF Gain (see “HMF Gain”)

•	HMF Frequency (see “HMF Frequency”)

•	LMF Gain (see “LMF Gain”)

•	LMF Frequency (see “LMF Frequency”)

Input Left & Right

Patch the audio signals you want to process here.

If your input signal is in mono, connect only to the L (left) input.

Output Left & Right

These are the audio outputs.
