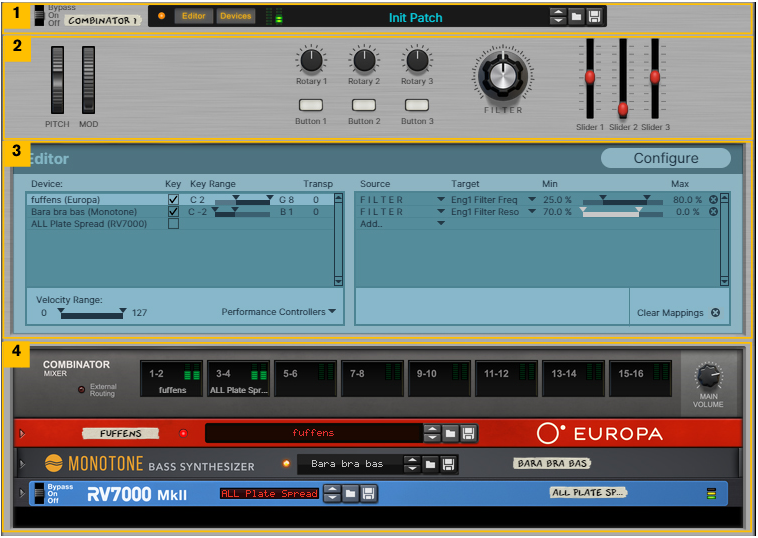

Combinator overview In the picture below an unfolded Combinator device is shown with its Editor and Devices container. The Combinator in this example contains a pre-made patch, that’s why there are devices in it, and assigned controls. The front of the Combinator consists of the following elements (from the top down): • 1. The narrow panel at the top is always shown, even when the whole Combinator is folded. It contains a display which (amongst other things) shows the name of the currently loaded Combi, and standard Select/Browse/Save patch buttons. • 2. Next is the Control panel, which is always shown if the Combinator is unfolded. You can configure and design your own unique control panel, see “Configuring the Combinator panel”. • 3. The Editor contains views for mapping devices and controls, and for configuring the Control panel. Here are also parameters for Key and Velocity Zone mapping as, well as Modulation Routing settings. The Editor can be shown/hidden by clicking the “Editor” button on the Control panel. • 4. At the bottom are the devices included in the Combi. At the top of the device section is an 8-channel stereo summing mixer, which allows for quick audio routing of devices in the Combi. The summing mixer is always present and cannot be removed. Devices can be shown or hidden by clicking the “Devices” button on the Control panel.
