Hardware Interface

Introduction

The Hardware Interface device is where you connect Reason to the “outside world”. This is where MIDI is received, and where audio signals are routed from physical inputs and to physical outputs of your audio hardware. The Hardware Interface is always present at the top of the rack, and cannot be deleted. This chapter is meant to serve as a panel reference, describing the various sections of the device. How to set up your audio hardware is described in the “Audio Basics” chapter.

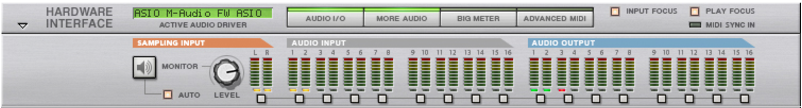

The Hardware Interface is normally unfolded, showing a panel with 2 Sampling Inputs, 16 Audio Inputs and 16 Audio Outputs and a couple of buttons.

•	On the right hand side at the top of the panel are the Input Focus and Play Focus buttons - these are described in “Input Focus and Play Focus”.

•	The Sampling Input, Audio Input and Audio Output sections feature a LED meter for each input and output channel.

Remember that the Hardware Interface is where any possible audio clipping will occur in Reason. Keep an eye on the clipping indicator on the Transport Panel, and also on the individual meters on the Hardware Interface panel. If a channel pushes the meter into the red, the level should be reduced at the source - see “About audio levels” in the “Audio Basics” chapter.

•	The multi-color LEDs below each channel indicate the following:

Green LED: Available and used channel (cable connected to the channel jack on the rear panel).

Yellow LED: Available but unused channel (no cable connected to the channel jack on the rear panel).

Red LED: Unavailable channel but with a connected cable on the rear panel. No audio will be present on channels with red LEDs.

Unlit LED: Unavailable and unconnected channel (no cable connected to the channel jack on the rear panel).

•	By clicking the “ADVANCED MIDI” button at the top on the panel, the Advanced MIDI Device panel is shown:

Refer to “Advanced MIDI Device” for more information.

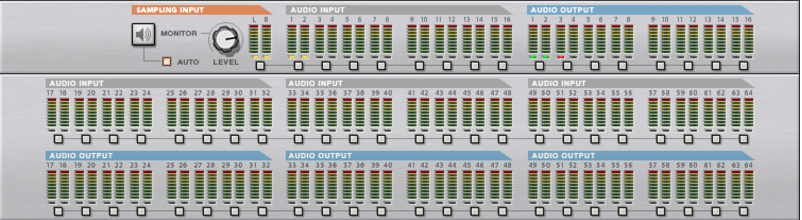

•	By clicking the “MORE AUDIO” button at the top on the panel, an additional Audio In and Out panel is shown for a total of 64 inputs and outputs.

Refer to “More Audio” for more information.

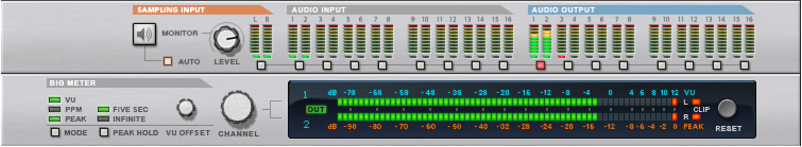

•	By clicking the “BIG METER” button at the top on the panel, a panel with bigger audio level meters is shown:

Refer to “The Big Meter” for more information.
