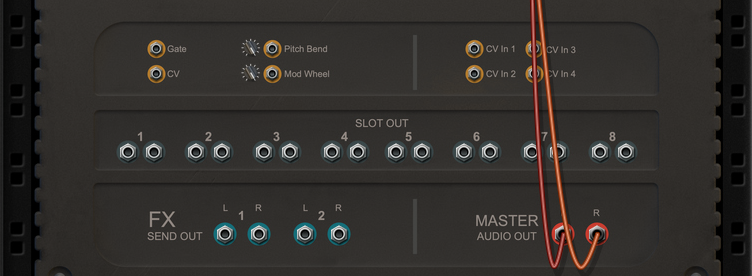

Connections

Remember that CV connections are NOT stored in the Mimic patches! If you want to store CV connections between devices, put them in a Combinator device and save the Combi patch.

Sequencer Control inputs

The Sequencer Control CV and Gate inputs allow you to play Mimic from another CV/Gate device (typically a Matrix or an RPG-8). The signal to the CV input controls the note pitch, while the signal to the Gate input delivers note on/off along with velocity. There are also inputs for modulating the Pitch Bend and Mod Wheel parameters.

CV In 1-4

These four assignable control voltage (CV) inputs can be used for modulating parameters on the Mimic front panel, by selecting “CV In” in the Mod drop-down selector for the desired parameter.

Slot Out 1-8

These outputs are breakout jacks for each individual Slot. Connect these to have the audio from the desired Slot(s) routed to its own stereo output pair.

Connecting any of the Slot Outs will automatically remove the corresponding Slot from the Master Audio Outs.

FX Send Out

Here you can route the audio from all eight Slots to external effect devices for further processing. Since there are no FX Return jacks on Mimic, route the processed signal to a separate mixer/audio channel. You can control the Send level of each Slot with the respective Send knobs (see “The Send section”).

Audio Output

These are the main audio outputs. When you create a new Mimic device, these outputs are auto-routed to the first available Mix Channel in the main mixer. If there is no Mix Channel available, a new one will be automatically created.
