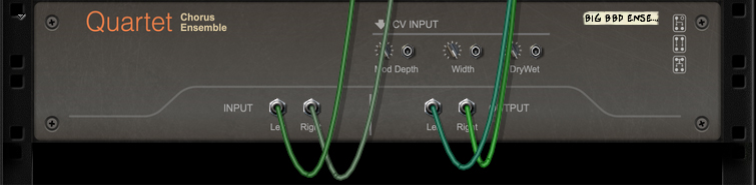

Connections CV Input Mod Depth This CV input can be used for modulating the Mod Depth parameter in the different algorithms. The input accepts bipolar control signals. The input signal can be attenuated with the corresponding attenuation knob. Note that the CV Modulation is global for the Mod Depth control in all algorithms. Width This CV input can be used for modulating the Width parameter in the different algorithms. The input accepts bipolar control signals. The input signal can be attenuated with the corresponding attenuation knob. Note that the CV Modulation is global for the Width control in all algorithms. Dry/Wet This CV input can be used for modulating the Dry/Wet parameter in the different algorithms. The input accepts bipolar control signals. The input signal can be attenuated with the corresponding attenuation knob. Note that the CV Modulation is global for the Dry/Wet control in all algorithms. Input Left & Right Patch the audio signals you want to process here. If your input signal is in mono, connect only to the L (left) input. Note that the result also depends on the current Routing setting (see “Routing”). Output Left & Right These are the audio outputs. Note that the result also depends on the current Routing setting (see “Routing”).
