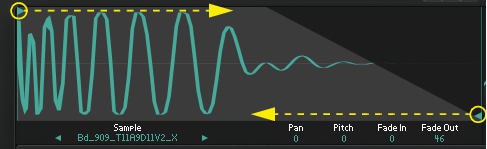

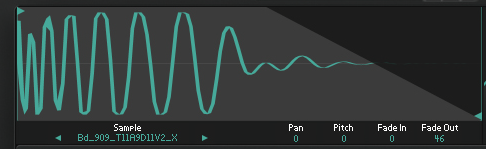

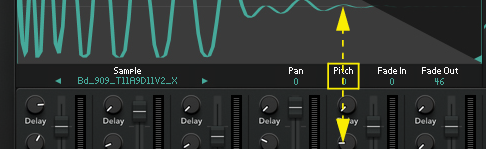

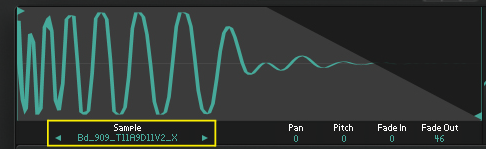

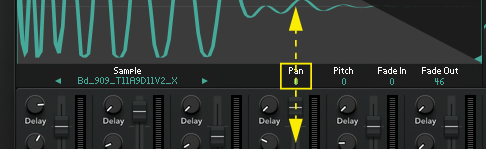

The Sample Playback section The Sample Playback section contains all sample related controls and parameters for the currently selected Drum Channel. The currently selected Drum Channel is indicated by the lit Drum Channel selection button (see “Selecting a Drum Channel”). The Sample Playback section features the following parameters and controls: Selecting Samples Select and load a sample either by clicking the triangular arrow buttons on either side of the sample name - or by clicking the sample name and selecting from the pop-up menu. The pop-up menu features eight sub-groups with different types of samples. All samples in Rytmik are embedded in the device itself, so when you save a Rytmik patch the samples are always included (as opposed to other sampler devices in Reason). Setting the Sample Start and End Click and drag the Sample Start handle sideways to change the where in the sample playback should begin. Click and drag the Sample End handle sideways to change the where in the sample playback should stop. Setting the Panning Click and drag up/down in the Pan box to place the sample in the stereo panorama. Range: 100L to 100R. Setting the Pitch Click and drag up/down in the Pitch box to set the pitch of the sample. Range: +/- 1200 cents. Setting Fade In and Fade Out Click and drag up/down in the Fade In and/or Fade Out boxes to apply a fade in/out of the sample. Any fade in/out is shown graphically in the sample display.
