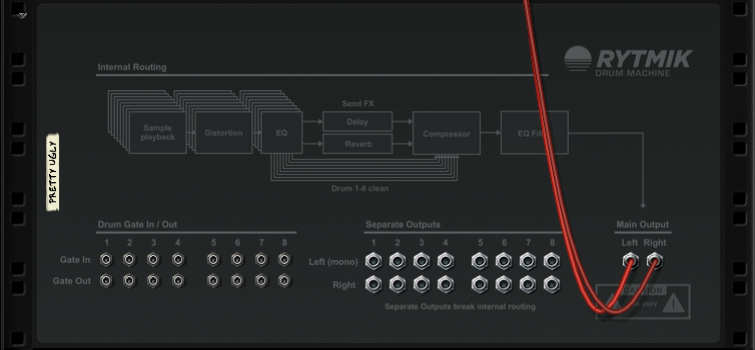

Connections Remember that CV connections are NOT stored in the Rytmik patches! If you want to store CV connections between devices, put them in a Combinator device and save the Combi patch. Drum Gate In/Out The Drum Gate inputs allow you to play Rytmik from another CV/Gate device. The Drum Gate inputs respond to “Note On/Off” along with Velocity. The Drum Gate outputs allow you to control other CV/Gate equipped devices from Rytmik. The Drum Gate outputs send out “Note On/Off” along with Velocity. Separate Outputs The separate outputs can be used for routing individual Drum Channels to external destinations, for further processing. Note that Drum Channels routed via separate outputs are automatically disconnected from the Master FX section. Note, though, that the signal could still be sent to (and heard via) the Send Effects (Delay and Reverb) on the Main Outputs. Main Output L & R These are the main audio outputs. When you create a new Rytmik device, these outputs are auto-routed to the first available Mix Channel in the Reason main mixer. If there is no Mix Channel available, a new one will be automatically created.
